PRODUCATOR: TAMSON - OLANDA

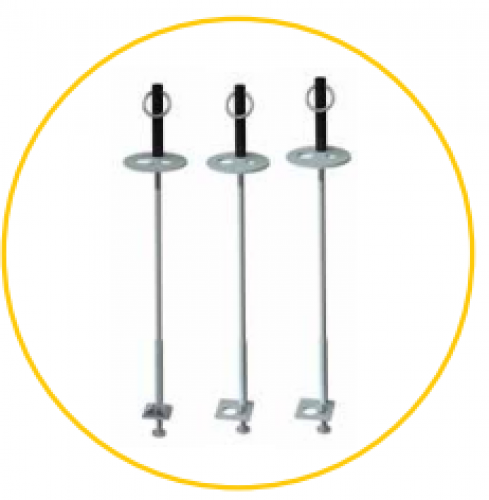

- STATIVE PENTRU DIVERSE TIPURI DE VASCOZIMETRE



Caracteristici speciale:

• maner izolat, foarte uosr de utilizat;
• din otel inox;
• +/- 265 mm
• design smart ce previne vascozimetrul sa cada din suport
• vascozimetrul nu se misca atunci cand se aplica vid (vacuum).

Vascozimetru ASTM D446, IP71, BS88, ASTM 2170
P/N 10T6001	Suport vascozimetru “Ubbehode”
P/N 10T6040	Suport vascozimetru Pinkevitch transparent d446, 269 mm”/ VPZH – 4
P/N 10T6061	Suport vascozimetru “Cannon – Fenske Routine”
P/N 10T6071	Suporet vascozimetru “cannon – Fenske Opaque/reverse flow)
P/N 10T6321	Suport vascozimetru “BS/U – tub transparent/ de rutina”
P/N 10T6051	Suport vascozimetru “BS/IP/RF Tub U opac”
P/N 10T6323	Suport vascozimetru “BS/IP/SL”
P/N 10T6324	Suport vascozimetru “BS/IP/SL (S)”
P/N 10T6325	Suport vascozimetru “BS/U/M”
P/N 10T6326	Suportvascozimetru “BS/IP/MSL”
P/N 10T6327	Suport vascozimetru “zeifuchs cross Arm”

Vascozimetru ASTM D2171
P/N 10T6052	suport vascozimetru “CMVV/AIVV” (ajustabil in lungime)
P/N 10T6053	suport vascozimetru “MKVV”

Vascozimetru ASTM D2162
P/N 10T6053	Suport vascozimetru “Master Ubbelohde”
P/N 10T6030	suport vascozimetru “Master cannon Fenske”

- SPALATOARE PENTRU VASCOZIMETRE



Permite spalare intern si extern a vascozimetrelor capilare asa cum este mentionat in ASTM d446. Elimina spalarea cu mana cu solvent T218TB. O curatare rapida (5 pana la 15 minute) pentru 6 vascozimetre capilare

* P/N 18450 Model VTW – classic (230 V/ 50-60 Hz)
* P/N T218TB Biosane T218 solvent (26 L)
* P/N T218TB5 Biosane T218 solvent (5 L)
* P/N BIO2000E biosane pre-wash
* P/N TLC10-3 00T0050 (230 v/ 50 Hz) P/N 00T0051 (230 V/ 50 Hz)
P/N 00T0052 (115 v/60 HZ) pentru condens

Caracteristici tehnice:

Pentru utilizare	AC 230 V/ 50-60 Hz – 16 A
Latime	400 mm
Adancime	400 mm
Inaltime	1000 mm
Greutate	+/- 30 kg

- CRONOMETRE PENTRU VASCOZIMETRE



Timer pentru masurarea timpului pentru un anumit volum de lichid
Aparatul contine 8 cronometre individuale
Functia de inchidere automata
Dupa oprirea aparatului, valorile sunt pastrate in memoria aparatului
Toate valorile pot fi resetate la acelsi timer pentru un canal individual

Caracteristici speciale:
* pana la 8 canale individuale
* foarte simplu de utilizat
* baterie – utilizare pe termen lung
* utilizare cu bloc de 9 V (baterie inclusa)
* 0.01 secunde rezolutie
Dimensiuni exterioare 195 x 112 x 46 mm (L x l x H)

P/N 10T6090

 - ILUMINATOARE PENTRU BAI VASCOZIMETRICE
Pentru vizibilitate in baie

Cod catalog
P/N 00T0909 iluminator Z41 (85-230 V/ 50-60 Hz)
P/N 00T0908 panoul din spate cu LED de iluminare pentru TV2000MKII si TV4000MKII (85 – 230 V/ 50-60 Hz)
P/N 00T0907 panoul din spate cu Led iluminare pentru TV7000DC si TV7000LT (85 – 230 V/ 50-60 HZ)



- ULEIURI PENTRU CALIBRARE VASCOZIMETRE CAPILARE



Caracteristici generale:
* certificate conform cu ISO 17025 Sistem de calitate
*U produs conform cu ASTM D2162
* densitatea g/mL conform cu ASTM D1480
* cinematica (mm2/s) si vascozitate dinamica (mPa*s) pentru toate temperaturile
* pachet standard la 500 mL
* conform cu cerintele ASTM si IP protocol de testare standard
*2 ani garantie

Numar de referinta	Standard de vascozitate	pahar de 500 ml – standarde de vascozitate – cu ISO 17025 certificat Vascozitatea cinematica in mm2/s (centistokes)
		20 grade C	25 grade C	40 grade C	50 grade C	60 grade C	80 grade C	100 grade C
25T0726	No.4	0.4693	0.4497	0.3982	-	-	-	-
25T0727	No.8	0.7412	0.7024	0.6045	-	-	-	-
25T0728	N1.0	1.292	1.203	0.9908	0.8826	-	-	-
25T0729	N2	2.886	2.604	1.981	1.688	1.461	-	-
25T0700	S3	4.527	3.999	2.885	2.392	2.022	1.511	1.184
25T0708	D5	6.553	5.677	3.893	3.142	2.598	1.876	1.433
25T0701	S6	10.46	8.872	5.781	4.538	3.663	2.548	1.891
25T0710	N7.5	12.38	10.49	6.787	5.300	4.253	2.924	2.149
25T0709	d0	14.57	12.15	7.579	5.810	4.597	3.100	2.249
25T0730	N10	20.72	16.92	10.01	7.473	5.780	3.758	2.656
25T0738	N14	30.30	24.46	14.03	10.28	7.812	4.939	3.413
25T0702	S20	42.78	33.72	18.19	12.90	9.545	5.785	3.882
25T0715	N26	60.96	48.99	27.45	19.75	14.74	8.992	6.018
25T0731	N35	85.45	65.30	32.42	21.93	15.75	8.833	5.633
25T0716	N44	111.2	86.38	44.20	30.15	21.46	12.10	7.613
25T0703	S60	158.8	117.9	54.29	35.16	24.04	12.81	7.786
25T0717	N75	196.6	150.4	73.73	49.01	34.08	18.41	11.18
25T0732	N100	330.2	238.4	101.6	62.9	41.31	20.59	11.89
25T0741	N140	408.7	304.8	140.1	89.71	60.31	30.82	17.91
25T0704	S200	649.1	457.5	183.0	109.1	69.24	32.58	17.99
25T0742	N250	794.9	581.3	253.5	157.5	103.0	50.11	27.95
25T0711	D500	817.8	573.3	224.7	132.2	82.92	38.19	20.71
25T0733	N350	1179	818.4	312.2	180.5	111.3	49.79	26.33
25T0740	N415	1369	988.1	415.7	253.1	162.5	76.56	41.52
25T0713	D1000	1640	1132	421.8	240.3	146.2	63.64	32.88
25T0705	S600	2219	1498	528.5	292.2	173.2	72.37	36.34
25T0743	N750	2807	1961	757.1	438.2	269.0	117.4	60.00
25T0734	N1000	4427	2952	1003	540.3	311.9	124.0	59.52
25T0744	N1400	5806	3941	1401	772.5	454.2	184.1	88.60
25T0706	S2000	8089	5303	1706	886.9	494.9	184.9	84.26
25T0714	D5000	10380	6729	2100	1073	589.4	214.4	95.45
25T0712	N2500	11431	7576	2507	1317	739.7	276.3	124.5
25T0736	D7500	12521	8282	2725	1424	794.8	293.0	130.7
25T0735	N4000	16881	10950	3420	1735	945.8	336.0	145.9
25T0718	N5100	27783	17622	5172	2528	1330	444.1	183.2
25T0707	S8000	37546	23680	6864	3310	1722	561.8	226.6
25T0719	N10200	58149	36421	10268	3896	2507	791.5	308.8
2570737	N15000	74610	46603	13014	6162	3123	972.3	373.1
25T0721	N18000	106285	65942	18077	8447	4235	1280	477.3
25T0722	S30000	137816	85532	23398	10902	5452	1638	604.2
25T0746	N62000	-	-	55000	25000	-	4000	1500
25T0745	N130000	-	-	150000	75000	-	15000	4000

- TERMOMETRE ASTM PENTRU VASCOZIMETRIA CINEMATICA

Din seria B – umplute cu lichid albastru
G sau T – umplute cu gallium sau toluene
Livrate cu certificat de conformitate
Certificat ISO 17025 – la cerere

ASTM No.	P/N catalog	Domeniu	Subdiviziuni ion grade C	Imersie in mm
1 C	25T0901B	-20 pana la +150	1	76
2 C	25T0902G	-5 pana la +300	1	76
3 C	25T0903G	-5 pana la +400	1	76
S5 C	25T0904B	-38 pana la +50	1	108
6 C	25T0905T	-80 pana la +20	1	76
7 C	25T0906G	-2 pana la +300	1	total
8 C	25T0907G	-2 pana la +400	1	total
9 C	25T0908B	-5 pana la +110	0.5	57
10 C	25T0909G	+90 pana la +370	2	57
11 C	25T0910G	-6 pana la +40	2	25
S12 C	25T0911B	-10 pana la +102	0.2	total
13 C	25T0912G	+155 pana la +170	.5	total
14 C	25T0913B	+38 pana la +82	0.1	79
S 15 C	25T0914B	-2 pana la +80	0.2	total
16 C	25T0915B	+30 pana la +200	0.5	total
17 C	25T0916B	+19 pana la +27	0.1	total
18 C	25T0917B	+34 pana la +42	0.1	total
19 C	25T0918B	+49 pana la +57	0.1	total
20 C	25T0919B	+57 pana la +65	0.1	total
21 C	25T0920B	+79 pana la +87	0.1	total
S22 C	25T0921C	+95 pana la +103	0.1	total
23 C	25T0922B	+18 pana la +28	0.2	90
24 C	25T0923B	+39 pana la +54	0.2	90
25 C	25T0924B	+95 pana la +105	0.2	90
26 C	25T0925B	+130 pana la +140	0.1	total
33 C	25T0927B	-38 pana la +42	0.2	50
34 C	25T0928B	+25 pana la +105	0.5	50
35 C	25T0929B	+90 pana la +170	0.2	51
36 C	25T0930B	-2 pana la +68	0.2	45
38 C	25T0931B	+24 pana la +78	0.2	100
39 C	25T0933B	+48 pana la +102	0.2	100
40 C	25T0932B	+72 pana la +126	0.2	100
41 C	25T0934B	+98 pana la +152	0.2	100
42 C	25T0935G	+95 pana la 255	0.5	100
44 C	25T0937B	+18.5 pana la +21.5	0.05	total
45 C	25T0938B	+23.6 pana la +26.4	0.05	total
46 C	25T0939B	+48.6 pana la +51.4	0.05	total
47 C	25T0940B	+58.9 pana la 61.5	0.05	total
49 C	25T0941B	+20 pana la +70	0.2	65
52 C	25T0942B	-1 pana la +5	0.1	total
54 C	25T0943B	+20 pana la +100.6	0.2	total
S56 C	25T0956B	+19 pana la +35	0.02	total
57 C	25T0944B	-20 pana la +50	0.5	57
61 C	25T0946B	+32 pana la +127	0.2	79
S62 C	25T0947B	-38 pana la +2	0.1	total
S63 C	25T0948B	+8 pana la +32	0.1	total
S64 C	25T0949B	+25 pana la +55	0.1	total
S65 C	25T0950B	+50 pana la +80	0.1	total
S67C	25T0952B	+95 pana la +155	0.2	total
68 C	25T0953G	+145 la 205	0.2	total
71 C	25T0955B	-37 pana la +21	0.5	76
73 C	25T0957B	-41.4 pana la +38.6	0.05	total
82 C	25T0958B	-15 pana la +105	1	30
83 C	25T0959B	+15 pana la +70	1	40
84 C	25T0960B	+25 pana la +80	1	249
85 C	25T0961B	+40 pana la +150	1	181
86 C	25T0962B	+95 pana la +175	1	35
87 C	25T0963G	+150 pana la +250	1	40
88 C	25T0964G	+10 pana la +200	1	57
89 C	25T0965B	-20 pana la +10	0.1	76
90 C	25T0977B	0 pana la +30	0.1	76
S91 C	25T0967B	+20 pana la +50	0.1	76
92 C	25T0968B	+40 pana la +70 grade C	0.1	76
93 C	25T0969B	+60 pana la +90	0.1	76
94 C	25T0970B	+80 pana la +110	0.1	76
95 C	25T0971B	+100 pana la +130	0.1	76
96 C	25T0972B	+120 pana la +150	0.1	76
98 C	25T0973B	+16 pana la +82	0.5	Total
99 C	25T0974B	-48 pana la +4	0.2	35
102 C	25T0975B	+123 pana la +177	0.2	100
103 C	25T0976G	+148 pana la +202	0.2	100
104 C	25T0977G	+173 pana la 227	0.2	100
105 C	25T0978G	+198 pana la +252	0.2	100
106 C	25T0979G	+223 pana la 227	0.2	100
107 C	25T0980G	+248 pana la +302	0.2	100
110 C	25T0981G	+133.6 pana la +136.4	0.05	total
111 C	25T0982G	+170 pana la +250	0.2	100
112 C	25T0983B	+4 pana la +6	0.02	total
113 C	25T0984B	-1 pana la +175	0.5	total
114 C	25T0985T	-80 pana la +20	0.5	total
S116 C	25T0986B	+18.9 pana la 25.1	0.01	total
S117 C	25T0977B	+23.9 pana la +30.1	0.01	total
118 C	25T0988B	+28.6 pana la +31.4	0.05	total
119 C	25T0989B	-38 pana la +30	0.1	100
S120 C	25T0990B	+38.5 pana la 41.5	0.05	total
121 C	25T09918B	+98.5 pana la 101.5	0.05	total
122 C	25T0992B	-45 pana la -35	0.1	total
126 C	25T0993B	-27.4 pana la -24.6	0.05	total
127 C	25T0995B	-21.4 pana la -18.6	0.05	total
128 C	25T0994B	-1.4 pana la +1.4	0.05	total

- ULEIURI PENTRU BAI VASCOZIMETRICE

Pentru inlocuirea apei sau a fluidului. Vascozitatea, volatilitatea cat si alte proprietati pot fi schimbate – acestea pot afecta performanta fluidului in baia controlata si in circulatoare

tip	Observatii	Viata			Vascozitate (mm2/s)				Domeniul de temperatura	Pachet
Minerale	T150 ulei galben mineral	1/.2 ani	X	X	3	2.2	1.8		80 pana la 150 grade C	20 Litri
Ulei siliconic	200 – 10 transparent dimetil siloxane polimer	fara limita	200 ore	< 10 ore	4	3.5	2.5		20 pana la +150 grade C	20 Litri
Silicon	200-50 polimer dimetil siloxane transparent	fara limita	200 ore	< 10 ore	20	15	9		80 pana la +150 grade C	20 Litri
Silicon	Silicon 210 negru dimetil poli siloxan	fara limita	<2 ani	< 1 an	(35)	30	22	12	80 pana la +250 grade C	20 Litri
Silicon	Silicon 550 incolor Polifenil metil dimetil siloxan	fara limita	<1 an	< 1200 ore	(50)	20	12	5	80 pana la +250 grade C	20 Litri

P/N 00T0220 Tmason Mineral ulei T150 20 L	(80 pana la 150 grade C/ 176 pana la 302 grade F)
P/N 08T0001 Ulei siliconic 200-20 mm2/s 20 L transparent	(20 pana la +150 grade C/ 68 pana la 302 F)
P/N 00T0226 Ulei siliconic 200-50 mm2/s – 20 L transparent	(80 pana la +250 garde C/ 176 pana la 302 grade F)
P/N 00T0229 Ulei siliconic 200-100 mm2/s – 20 L transparent	(80 pana la 150 garde C/ 276 pana la 302 grade F)
P/N 00T0231 Ulei siliconic 210 – 20 Litri Darkish	(80 pana la 250 garde C/ 176 pana la 482 grade F)
P/N 00T0238 Ulei siliconic 550 – 20 Litri transparent	(80 pana la 250 grade C/ 176 pana la 482 grade F)
